Industrial EO Sterilizer

INDUSTRIAL EO STERILIZATION EQUIPMENT

Industrial Ethylene Oxide (EtO) Gas Sterilizers

ISO 11135 & ISO 13485 Compliant Turnkey Solutions

Ethylene Oxide (EtO or EO) sterilization is a low-temperature gaseous process used to sterilize medical devices, pharmaceuticals, and other products sensitive to high temperatures and moisture. Using a vacuum-based process, EO gas penetrates complex geometries and compatible packaging to reach hard-to-access surfaces. We provide complete turnkey solutions, full regulatory validation support, and custom chamber capacities from 1 m³ to 118 m³, tailored to different product types, production volumes, and facility requirements.

✓ Custom Configurations ✓ Industrial Applications ✓ Engineering Support
Ethylene Oxide (EO)Sterilizer
First 1234567 Last



WHY CHOOSE OUR EO STERILIZATION SOLUTIONS

EO Sterilization Equipment Built Around Your Production Requirements

Industrial sterilization projects require more than selecting a chamber. Equipment configuration, loading methods, utilities, process control, and facility integration all influence the final solution.

01

Custom Chamber Design

Riches provides custom chamber design based on product dimensions, batch capacity, loading methods, and factory layout, ensuring the EO sterilizer fits your production requirements.

02

Industrial System Integration

Industrial EO sterilization systems integrate control units, gas supply, ventilation, exhaust treatment, and aeration equipment according to factory layouts and production requirements.

03

Process Control

Process control monitors temperature, humidity, vacuum, EO dosing, and exposure time, enabling adjustable sterilization cycles based on product and process requirements.

04

Project Engineering Support

Project engineering support covers equipment layout, 3D design, utility planning, installation, and commissioning based on site conditions and production requirements.

Industry ETO Sterilizer Specifications

Customize the size of the ethylene oxide sterilizer to fit your space perfectly.



VOLUME PALLET
qty* size(mm)
INTERNAL SIZE
(mm)
OUTER SIZE
(mm)
OUTER SIZE
(mm)
OUTER SIZE
(mm)
(SLIDING DOOR) (REVOLVING DOOR) (LIFTING DOOR)
1m³ / 1400*700*1000 1750*1270*1520 / /
2m² / 1650*1000*1200 2070*2520*1720 2000*1570*1720 /
6m³ 3*(1200*800) 2700*1350*1700 2670*3220*2220 2600*1920*2220 2670*1910*3950
8m³ 3*(1200*1000) 3500*1350*1700 3920*3220*2220 3850*1920*2220 3920*1910*3950
35m³ 15*(1200*800) 13000*1350*2000 13420*3220*2520 13550*1920*2520 13420*1910*4550
35m²-2 14*(1200*800) 6000*2700*2200 6470*6180*2780 6470*3410*2780 6470*3340*5070
40m²-2 12*(1200*1000) 6650*2700*2200 7110*6260*2780 7110*3450*2780 7110*3380*5130
55m²-2 14*(1200*1000) 7500*2700*2700 7960*6260*3280 7960*3450*3280 7960*3380*6130
57m²-2 18*(1200*1000) 9650*2700*2200 10110*6260*2780 10110*3450*2780 10110*3380*5130
118m³-2 38*(1200*1000) 20200*2700*2200 20660*6180*2780 20660*3450*2780 20660*3380*5070

Need exact technical specifications? Share your target chamber capacity, sterilized products, packaging dimensions, and project location. We can discuss an appropriate equipment configuration.

Request Equipment Specifications →

Related Equipment for Ethylene Oxide Sterilizers

Explore essential equipment for ethylene oxide sterilization systems, including vacuum pumps, EO gas injection units, temperature and humidity control systems, PLC controls, aeration rooms, and exhaust gas treatment equipment. Configurations can be tailored to chamber capacity, medical device requirements, facility layout, and production workflows.

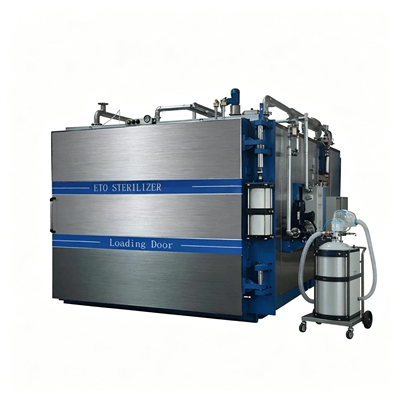

Needle Ethylene Oxide Sterilizer

EO Sterilizer

Core equipment; addresses requirements for device procurement.

1)Precondition Room.jpg

EO Aeration Room

Designed for clients who require a dedicated space for aeration (degassing) and high-volume production.

5)5.EO Gas Scrubber.jpg

EO Gas Abatement System

Intended for clients focused on emission control and facility infrastructure integration

EO Sterilization Equipment for Medical Device & Healthcare Product Manufacturing

Ethylene oxide sterilization is commonly considered for compatible products that cannot tolerate certain high-temperature or moisture-intensive sterilization processes. Product suitability and validated sterilization cycles must be assessed for each application.

Medical Device Manufacturing

EO sterilization equipment supports compatible catheters, tubing, plastic components, and disposable medical devices using controlled low-temperature sterilization cycles.

Healthcare Product Sterilization

Designed for suitable healthcare products, EO systems accommodate different packaging types, product geometries, and batch loads according to validated process requirements.

Customized Production Capacity

Chamber dimensions, loading configurations, and cycle controls can be customized to match production volumes, product specifications, and available factory space.

Integrated Sterilization Systems

Vacuum, humidity control, EO dosing, aeration, and exhaust treatment systems can be integrated according to facility conditions, process requirements, and safety standards.

Application note: The use of EO for a specific product depends on material compatibility, packaging, sterilization validation, residual limits, and applicable regulatory requirements.


MANUFACTURING & ENGINEERING

Engineering Support from Equipment Planning to Project Delivery

Industrial EO sterilization equipment must be coordinated with the actual production environment. Early technical discussions help identify the chamber configuration, equipment interfaces, site conditions, and documentation requirements for a project.

01 — Requirement Review

Review sterilized products, target loading capacity, packaging dimensions, and facility requirements.

02 — Equipment Configuration

Discuss chamber arrangement, supporting equipment, utilities, and operational workflow.

03 — Technical Coordination

Coordinate equipment interfaces, project documentation, and agreed technical specifications.

04 — Delivery & Implementation Planning

Discuss delivery scope, installation conditions, commissioning responsibilities, and project schedules.

Discuss Your Project →

STANDARDS & PROJECT REQUIREMENTS

Designed with Sterilization Process & Regulatory Requirements in Mind

EO sterilization projects should account for relevant sterilization standards, equipment safety requirements, occupational exposure controls, environmental regulations, and customer validation responsibilities.

ISO 11135

A key reference standard for development, validation, and routine control of ethylene oxide sterilization processes for medical devices.

Process Validation

Sterilization cycle validation and routine monitoring requirements should be defined by the responsible manufacturer or sterilization service provider.

EO Safety & Emissions

Facility engineering must consider EO hazards, gas handling, worker protection, ventilation, and local emissions regulations.

Important: ISO 11135 is a sterilization process standard, not an automatic certification of the equipment. Any claims about ISO certification, CE marking, pressure vessel compliance, or validation support should be published only after verification of the actual equipment and documentation.

EO Sterilization Equipment Project References

Explore EO sterilization equipment applications across medical device manufacturing, disposable syringe production, medical mask processing, and compatible surgical instruments. Each project configuration considers chamber capacity, product materials, packaging, cycle control, aeration, and exhaust treatment to meet specific production and facility requirements.

productcate-800-600

South Korea

Application: Sterilization of single-use syringes and compatible packaged medical consumables.

Equipment: Industrial EO Sterilizer with customized chamber capacity, vacuum control, EO dosing, humidity regulation, and aeration configuration.

Scope: Equipment configuration planning based on syringe batch volume, packaging permeability, material compatibility, and production requirements.

productcate-800-600

Vietnam

Application: EO sterilization of compatible medical masks and packaged nonwoven healthcare products.

Equipment: EO Sterilization System with configurable chamber loading, temperature and humidity control, gas injection, aeration, and exhaust treatment.

Scope: System configuration based on mask materials, packaging structure, production volume, residual EO limits, and process validation requirements.

productcate-800-600

Saudi Arabia

Application: Low-temperature EO sterilization of compatible laparoscopic instruments and packaged surgical devices.

Equipment: Customized EO Sterilizer with programmable cycle control, vacuum system, EO dosing, process monitoring, and aeration configuration.

Scope: Equipment planning based on instrument materials, joint and lumen geometry, packaging, load arrangement, and validated sterilization parameters

How to Start Your EO Sterilizer Equipment Project

Actual project references help prospective buyers assess equipment capacity, system configuration, installation requirements, and engineering capabilities. Please replace the placeholders below with verified details of completed projects.

01

Submit Requirements

Share your product types, batch capacity, packaging details, and project location.

02

Technical Discussion

Review chamber sizing, process needs, facility constraints, and supporting equipment.

03

Equipment Proposal

Discuss the proposed configuration, equipment scope, commercial terms, and schedule.

04

Project Coordination

Confirm technical details and coordinate manufacturing, delivery, and implementation responsibilities.

FREQUENTLY ASKED QUESTIONS

Industrial EO Sterilizer FAQs

Answers to common questions from medical device manufacturers and industrial sterilization equipment buyers.

What is an industrial ethylene oxide sterilizer?

An industrial ethylene oxide sterilizer is equipment used as part of a controlled EO gas sterilization process. It is commonly applied to compatible medical devices and other products requiring low-temperature sterilization. The complete process requires appropriate equipment, validated cycles, and safety controls.

Can EO sterilizer chamber dimensions be customized?

Chamber dimensions can be discussed according to your product dimensions, loading configuration, batch capacity, and facility constraints. The final available options depend on engineering feasibility and equipment specifications.

What information is needed to request an EO sterilizer quotation?

Useful information includes the products to be sterilized, packaging dimensions, target batch capacity, preferred loading method, project location, facility layout, and any specific technical or regulatory requirements.

Does an EO sterilization project require preconditioning and aeration?

Many industrial EO sterilization processes incorporate preconditioning and aeration stages. Their design and necessity depend on the selected process, product characteristics, validation approach, and facility requirements.

Is an EO sterilizer automatically compliant with ISO 11135?

No. ISO 11135 addresses the development, validation, and routine control of EO sterilization processes for medical devices. Equipment selection and process validation must be evaluated separately against the applicable requirements.

How can I choose the right EO sterilizer capacity?

Capacity selection should consider the actual loaded product volume, packaging density, production throughput, sterilization cycle requirements, loading efficiency, and available facility space. Chamber volume alone does not determine daily production capacity.

Tell Us About Your EO Sterilization Equipment Requirements

Share your project details to start a technical discussion about suitable EO sterilizer equipment and system configurations.

Helpful Information to Include

✓ Products to be sterilized

✓ Target batch or production capacity

✓ Product or pallet dimensions

✓ Required equipment or supporting systems

✓ Project country and expected schedule

Request a Custom EO Sterilization Solution

1
2
3
5
6
7
8
9
10
11
12
13


Versatile Ethylene Oxide Sterilizers for Multiple Industries

Our Eto Sterilizer Machine are designed to meet the disinfection needs of various industries, including medical supplies, medical devices, sanitary products, pharmaceuticals, cosmetics, textiles and biological products, valuables, and spices. These sterilizers provide highly effective sterilization, ensuring the safety and hygiene of products. Whether used in hospitals, laboratories, the food industry, or for everyday items, our Eto Sterilization Equipment offer reliable and comprehensive disinfection solutions.

Learn More



Sterilization Process (EO Sterilizer)


The sterilization process of the Riches EO sterilizer delivers efficient, safe, and validated sterilization results. This process typically comprises stages such as pre-conditioning, vacuuming, EO gas injection, sterilization dwell, aeration (ventilation), and final residual removal. During the pre-conditioning stage, the system precisely controls temperature and humidity to optimize EO gas penetration. The sterilization chamber is evacuated to remove air, followed by the automatic injection of EO gas to ensure uniform distribution. Upon completion of the sterilization phase, the system proceeds to the aeration stage to remove residual EO gas, thereby ensuring product safety. The entire sterilization cycle is managed by an automated PLC system featuring real-time monitoring, data logging, and alarm protection, ensuring compliance with international sterilization standards such as ISO 11135.

EO Sterilizer


Start Your Custom Project




Precision Engineering in EO Sterilizer Production

Gas pipeline of ethylene oxide disinfection cabinet
Every detail reflects superior engineering.
Welding process of ethylene oxide disinfection cabinet
Crafted for reliability.
Gas pipeline of ethylene oxide disinfection cabinet
Engineered for perfection.






Certification


ISO 13485

ISO 13485

ISO 12100

ISO 12100

ISO 11135

ISO 11135

ISOIEC 17065

ISOIEC 17065

ISO 9001

ISO 9001



Richs ETO sterilizer is designed and manufactured in compliance with key international standards to ensure safety, reliability, and global market acceptance. ISO 13485 demonstrates our medical device quality management capability, while ISO 9001 ensures consistent manufacturing quality control. ISO 12100 supports systematic risk assessment for safe machine design, and ISO 11135 validates the effectiveness of ethylene oxide sterilization processes. IEC 17065 reflects product conformity and certification reliability. Together, these standards guarantee that our sterilizer meets strict international requirements for performance, safety, and regulatory approval in medical and pharmaceutical applications.

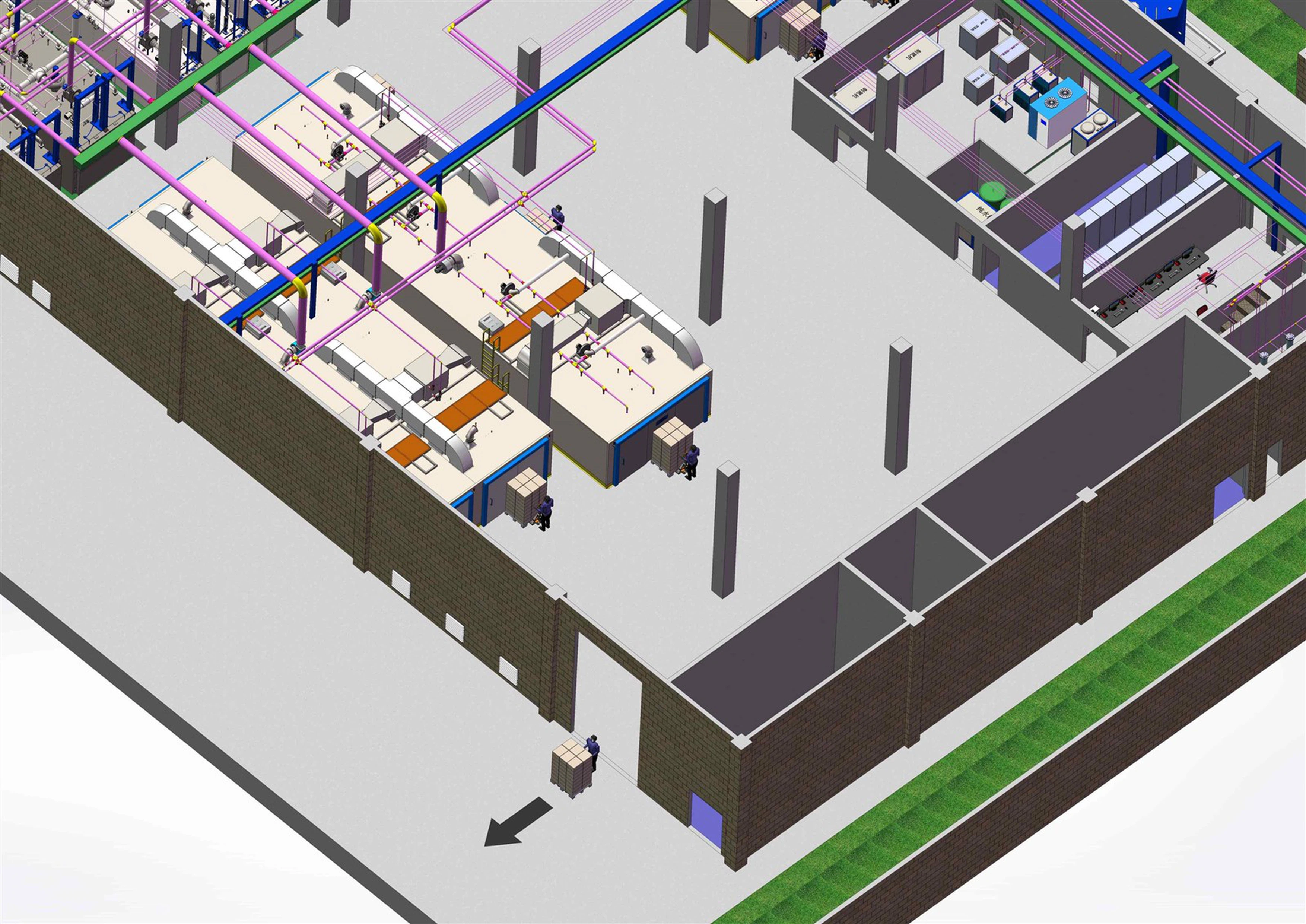

Custom Eto Gas Sterilization with Professional 3D Design Services



Custom Ethylene Oxide Sterilizers with Professional 3D Design Services

Custom Ethylene Oxide Sterilizers with Professional 3D Design Services

Custom Ethylene Oxide Sterilizers with Professional 3D Design Services

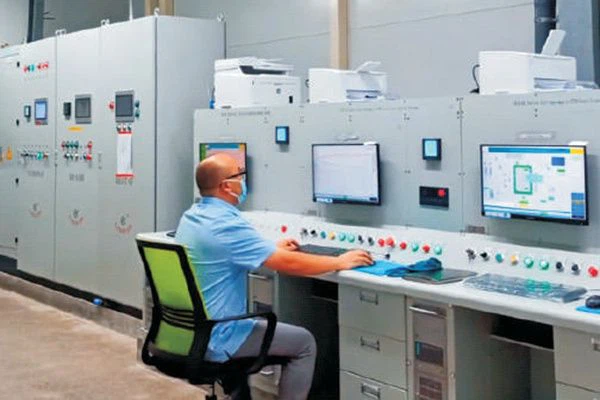

Hardware Of EO Sterilization Machine Control System
Separate Control System
Allows Independent Control Of Each Module, Improving Flexibility And Ease Of Maintenance.
Integrated Control System
Centrally Manages All Functions, Streamlining Operation And Enhancing Equipment Coordination.

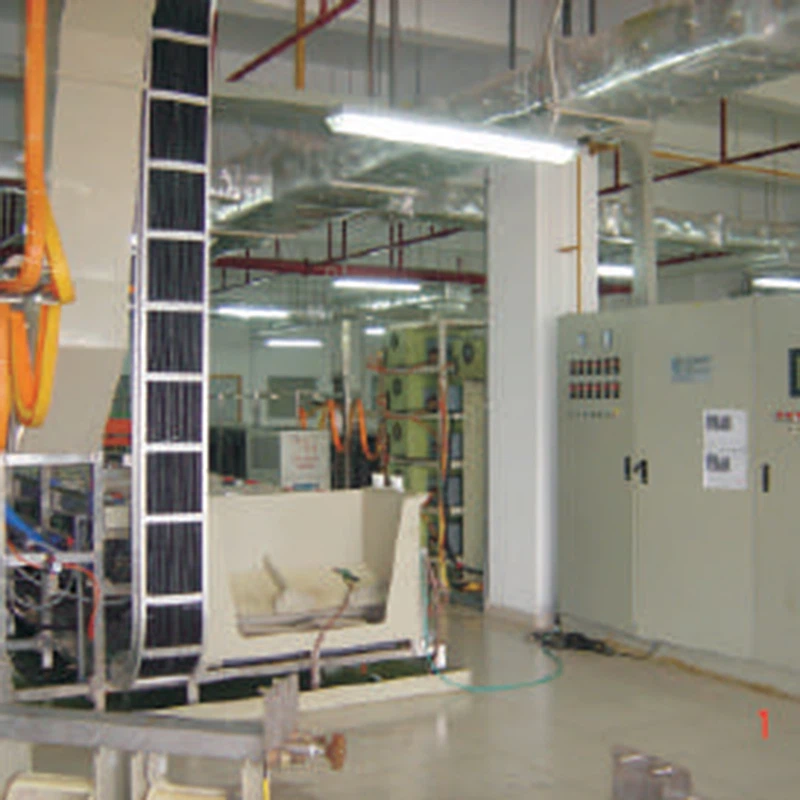

Zinc Plating Auto-Line
Provides Corrosion-Resistant Metal Surface Treatment, Enhancing The Durability Of The Sterilizer.
Die-Climbing Control System
Precisely Controls Mold Movement, Ensuring High-Precision Parts.
MES System
Monitors The Production Process, Ensuring Efficient Production And Quality Control Of Epoxy Sterilizers.
Software Report
Automatically Generates Data Reports For Quality Tracking And Performance Analysis.

Start Your Custom Project









Industrial Eto Sterilizer Door System

Common door types include pneumatic revolving doors, pneumatic sliding doors, and electric lift doors. We also offer custom services.

Pneumatic revolving door

Pneumatic revolving door

Pneumatic sliding doors

Pneumatic sliding doors

Electric lift gate

Electric lift gate

Related equipment
Preconditioning Room
Room for preconditioning sterilized items with preconditioning temperature and humidity
Aeration Room
Room for removing residual EO gas from sterilized items
Automatic Transmission Device
Automatic device for transferring items
Ethylene Oxide Sterilizer Control System
Core system for controlling sterilization parameters
EO Gas Scrubber
Environmental equipment for treating EO waste gas





Production environment


Riches operates a modern EO sterilizer factory with precision machining and automated assembly, ensuring stable quality and customized engineering solutions for global medical device manufacturers.

Welding & Structural Fabrication Workshop
Welding & Structural Fabrication Workshop
Electrical Control & Commissioning Workshop
Electrical Control & Commissioning Workshop
Machine Assembly & Team Operations Workshop
Machine Assembly & Team Operations Workshop
FAQ

Q: 1. Why should we choose your ETO sterilizer instead of other suppliers?

A: Our ETO sterilizer is designed with industrial-grade safety, precise process control, and stable sterilization performance. Compared with standard equipment, we provide fully automated EO injection, real-time monitoring, and validated sterilization cycles, ensuring consistent results for medical and pharmaceutical applications. In addition, we support global installation and long-term technical support, reducing your operational risk.

Q: 2. How do you ensure precise temperature and humidity control during sterilization?

A: Our system uses high-accuracy sensors and PLC intelligent control to maintain stable temperature and humidity throughout the sterilization cycle. This ensures EO gas penetration efficiency and sterilization effectiveness, while avoiding product damage caused by unstable environmental conditions. All parameters can be recorded and traced for validation purposes.

Q: 3. What advantages does your automated EO injection system provide?

A: The automated EO injection system precisely controls gas dosage based on chamber volume and sterilization program. This eliminates manual errors, improves safety, reduces EO waste, and ensures consistent sterilization quality. It also integrates with safety interlocks to prevent leakage or abnormal injection.

Q: 4. Is your ETO sterilizer safe to operate in industrial environments?

A: Yes. Our equipment is designed with explosion-proof electrical systems, EO gas leak detection, negative pressure control, and emergency shutdown protection. These multiple safety layers ensure safe operation even in continuous industrial use, fully aligned with international safety standards.

Q: 5. How does your system reduce EO gas consumption?

A: We optimize EO usage through precise injection control, vacuum cycles, and efficient gas circulation design. This allows maximum sterilization efficiency with minimum EO consumption, significantly reducing operational costs and environmental impact while maintaining sterilization performance.

Q: 6. Can the sterilization chamber size be customized for our production needs?

A: Yes. We provide fully customizable chamber sizes based on your product type, production volume, and facility layout. Whether you need small laboratory units or large industrial sterilization systems, we can design and manufacture tailored solutions to meet your requirements.

Q: 7. Does your equipment support remote monitoring and control?

A: Yes. Our ETO sterilizer is equipped with a remote monitoring system that allows operators to track real-time sterilization parameters, cycle status, alarms, and performance data. This improves operational efficiency and enables predictive maintenance and troubleshooting support.

Q: 8. What industries can your ETO sterilizer be used for?

A: Our equipment is widely used in medical device manufacturing, pharmaceutical packaging, laboratory equipment sterilization, and healthcare product processing. It is especially suitable for heat-sensitive materials that cannot be sterilized using high-temperature methods.

Q: 9. Do you provide installation and technical support overseas?

A: Yes. We provide global installation guidance, on-site commissioning support, operator training, and after-sales technical assistance. Our engineering team ensures that the equipment is properly installed and validated according to international sterilization standards.

Q: 10. How do you ensure sterilization compliance and validation?

A: Our ETO sterilizers are designed in compliance with international standards such as ISO 11135. We support full process validation, including temperature, humidity, EO concentration, and cycle repeatability. This ensures your sterilization process meets regulatory requirements for medical and pharmaceutical markets.



Hangzhou Riches Engineering Co., Ltd. is one of the most professional industrial eo sterilizer manufacturers and suppliers in China, specialized in providing high quality custom service and ODM service. We warmly welcome you to buy high-grade industrial eo sterilizer for sale here from our factory.
