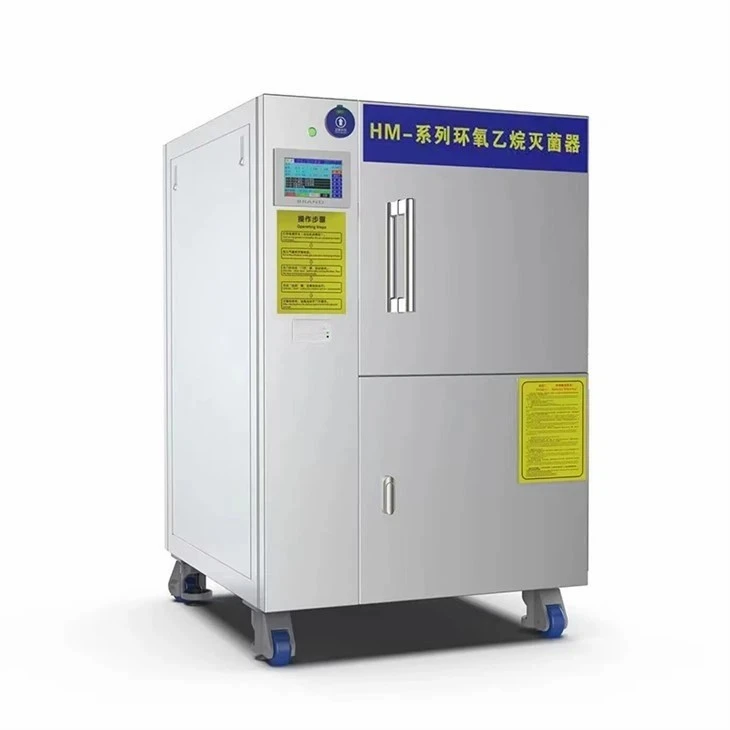

Eo Gas Sterilization Machine
video
Eo Gas Sterilization Machine

Eo Gas Sterilization Machine

EO gas sterilization machines use ethylene oxide gas to kill germs. Ethylene oxide is a small - molecule gas. It can easily pass through the tiniest holes and spaces in objects. Once it reaches the microbes, it reacts with their DNA and proteins.

Features

eo gas sterilization machine

EO gas sterilization machines use ethylene oxide gas to kill germs. Ethylene oxide is a small - molecule gas. It can easily pass through the tiniest holes and spaces in objects. Once it reaches the microbes, it reacts with their DNA and proteins. This reaction stops the microbes from growing and reproducing, achieving sterilization.



In the medical field, many delicate instruments like fiber - optic endoscopes and implantable devices are made of heat - sensitive materials. Ethylene Oxide Gas Sterilizer can sterilize them without causing any damage. The gas can reach all parts of these complex - shaped items, ensuring every microbe is eliminated.​



In the pharmaceutical industry, EO gas sterilization machines are also widely used. They sterilize drug - making equipment and packaging materials. By getting rid of all microorganisms, they help keep the quality and safety of pharmaceutical products. Whether it's glass vials or plastic containers, the machine can handle them well.​



The advantage of EO gas sterilization machines is their effectiveness and flexibility. They can sterilize a wide variety of materials, including plastics, rubber, and some metals. The process is also relatively fast, which helps increase productivity. But, since ethylene oxide is a hazardous gas, these machines are equipped with advanced safety features. Tight - sealed chambers prevent gas leakage, and ventilation systems quickly remove the gas after sterilization.​



Other Attributes



Place of Origin

HangZhou, China

Brand

HZRICHES

Product

eo gas sterilization machine

Type

Fully-Automatic Gas Sterilizer For Industry



Chamber Material

Stainless Steel

Size

1m³ - 100m³

Standard

CE1422 ISO11135

Ways for Open/close door

Pneumatic Revolving / Sliding /Lifting Door

Data saved term

Ten years( if hard disk is not damaged)

Historical curve

Continuous time intervals

Data recording form

Process is triggered record, alarm triggered records

Control time range

0-99 hours,resolution of sterilization time

Temperature sensor

Output form:PT100;

Range:-50~100℃

Pressure sensor

Output form:4~20mA

Voltage :DC24V

Range:-0.1~+0.15Mpa

Humidity sensor

Output form:4~20mA

Voltage :DC24V

Range :0~100%RH

Control cabinet

Integrated work station GIB1-E01

Control module

SIEMENS S7200 PLC/SMART

Screen

SIEMENS SMART 700IE

Low voltage apparatus

SCHNEIDER

Buttons and indicator light

SCHNEIDER

IPC(Industrial Personnal Computer)

SIEMENS SMART IPC3000

Printer

HP



Packaging And Delivery



Packaging Material

Wooden carton or will be detailed by mail

Port

ShangHai

Lead Time

30 days

Term Of Delivery

FOB or EXW

Package Weight

Detailed by different sterilizer size

Package Measurement

Detailed by different sterilizer size



Supply Ability



Supply Ability: 3 units / Month
