How We Design EO Sterilization Solutions For Spices？





Why Spice EO Sterilization Requires Process Engineering

For spice manufacturers, dried herbs, seasoning ingredients and other temperature-sensitive food materials, microbial control cannot be solved simply by selecting a large ethylene oxide sterilizer. Different products can have different moisture contents, densities, initial bioburden levels, packaging materials and loading configurations. These variables affect gas penetration, exposure conditions, aeration and final product quality.

At Hangzhou Riches Engineering Co., Ltd., we approach an EO project from the process rather than starting with a standard chamber size. Our first objective is to understand what the customer needs to process, how the product is packaged, how much product is treated per batch and what microbial-control and residual requirements apply.

What We Analyze Before Designing the Equipment

Before proposing an EO system, our engineers recommend collecting several key parameters.

Product: What type of spice or ingredient is being processed? What are the moisture content, bulk density, temperature tolerance and critical quality characteristics such as aroma, color and volatile components?

Microbiology: What is the initial bioburden? Which microorganisms are being controlled? What microbial reduction target is required?

Packaging: Is the product packed in PE, PP, composite film, paper bags or another material? What are the package dimensions and thickness? Can the packaging provide sufficient EO permeability?

Loading: What is the batch quantity in kg and m³? Are products loaded in bags, cartons or pallets? What are the minimum and maximum loading configurations?

Residuals: What EO and ECH residual requirements apply? What aeration time is required before the product can move to the next production stage?

These answers allow us to determine whether the project requires changes to chamber dimensions, loading structure, vacuum performance, gas distribution, conditioning, aeration or process-control parameters.

How Riches Builds a Customized EO Sterilization Solution

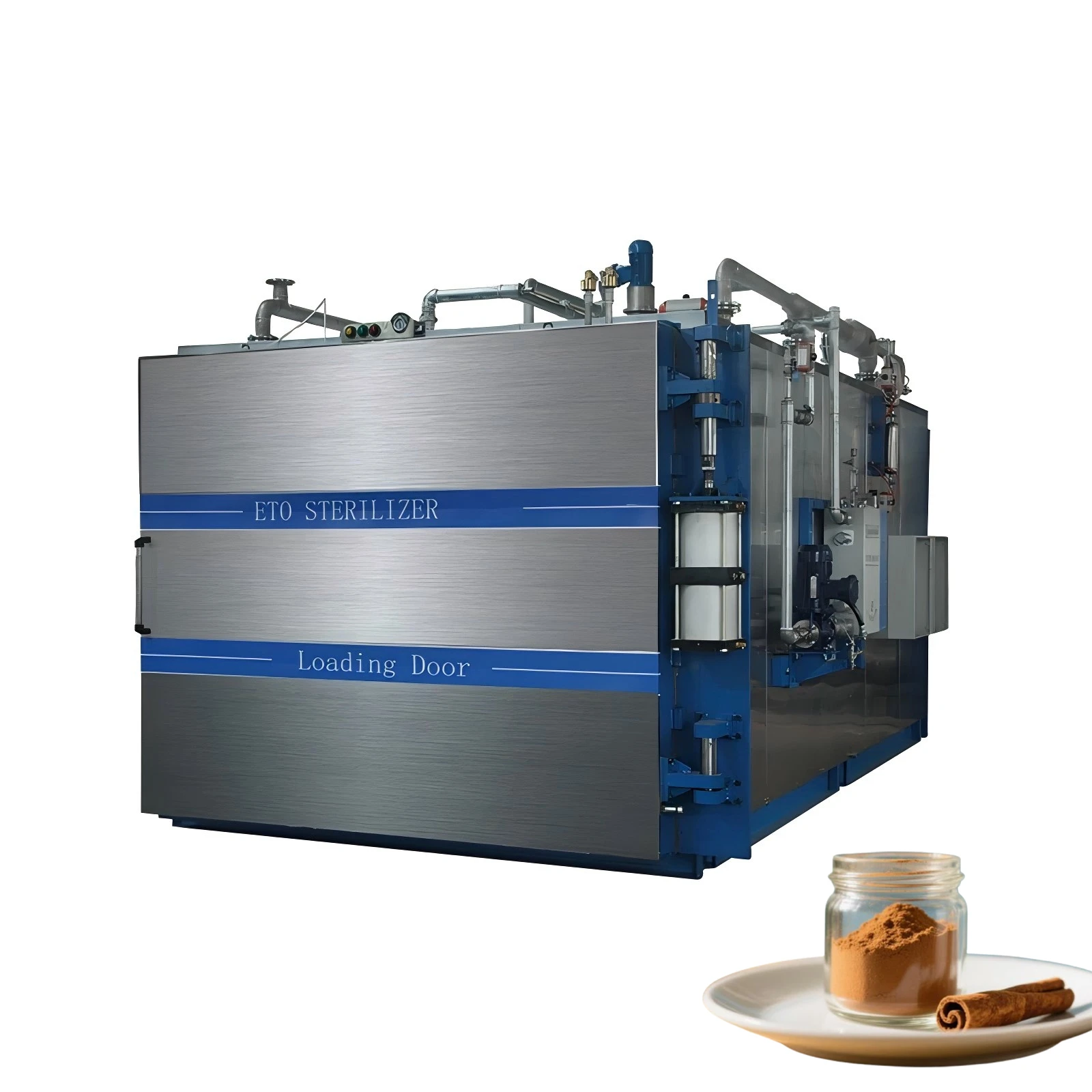

Riches develops custom EO sterilization equipment according to the customer's product and production requirements. The solution can include the sterilization chamber, vacuum system, EO injection system, temperature and humidity control, gas circulation, exhaust system, aeration chamber and automated process-control system.

For high-volume spice processing, chamber dimensions can be designed around the actual pallet size, loading quantity and production capacity. Instead of designing the chamber first and forcing the product into a fixed configuration, we work in the opposite direction: product → packaging → loading → process → chamber → supporting systems.

This engineering sequence helps us identify potential problems before manufacturing, including insufficient gas penetration, uneven chamber conditions, excessive dead space, inefficient loading and insufficient aeration capacity.

Controlling EO Exposure, Aeration and Residuals

An EO project does not end when the exposure stage is completed. After treatment, the product may require controlled aeration to remove residual EO and related substances.

For spice applications, we therefore consider the complete process: conditioning, vacuum, EO injection, exposure, evacuation, air exchange and aeration. The actual process parameters should be developed and verified according to the product, packaging, loading pattern and applicable customer requirements rather than copied from another application.

We also consider product quality during process development. If aroma, flavor, color or volatile components are critical, the treatment conditions need to be evaluated together with the required microbial-control performance.

Riches Engineering Support from Chamber to Validation

Riches provides more than a stainless steel chamber. We support customers through technical requirement analysis, chamber design, system configuration, equipment manufacturing, factory testing, installation, commissioning and process-development support.

For projects without an established EO cycle, our engineering team can use the customer's product, packaging, loading and microbiological data as the starting point for process development. For projects with existing process parameters, we can design the equipment around the validated or specified operating requirements.

Depending on the project scope, Riches can also provide documentation and support related to IQ/OQ/PQ and process qualification.

If you are evaluating EO treatment for spices, herbs or food ingredients, send us the product type, moisture content, packaging structure, batch loading quantity and microbial-control target. Riches can use these parameters to evaluate the chamber configuration, process requirements and supporting systems, and develop an EO sterilization solution around your actual production conditions.
